Fire, smoke and sparks#

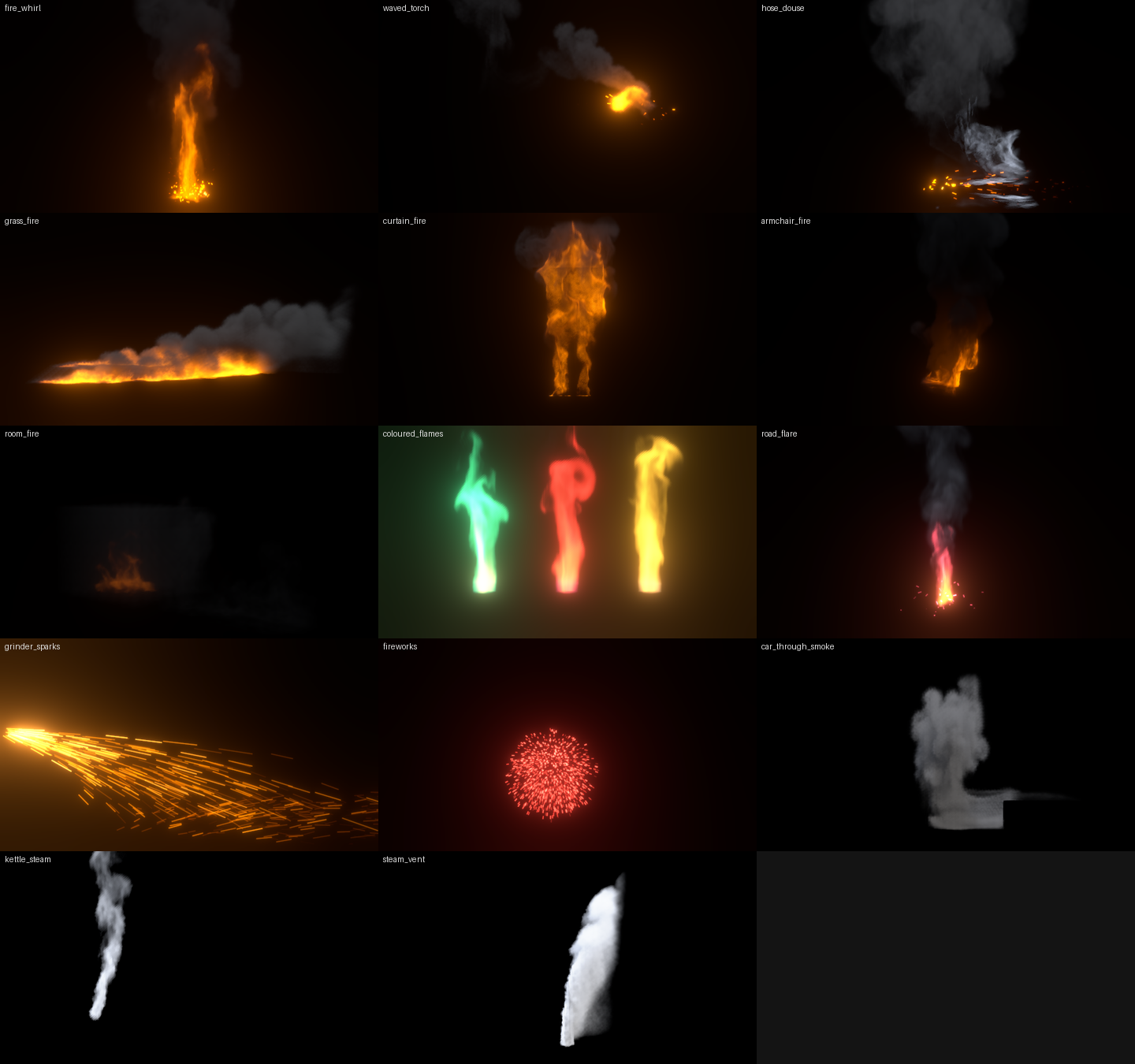

Blackbody simulates fire as a real gas: fuel burns into heat, soot and flame, hot gas rises, swirls and expands, and smoke drifts. Each feature below is a few settings on an emitter or a collider, or a section of Properties, and a preset shows each one working.

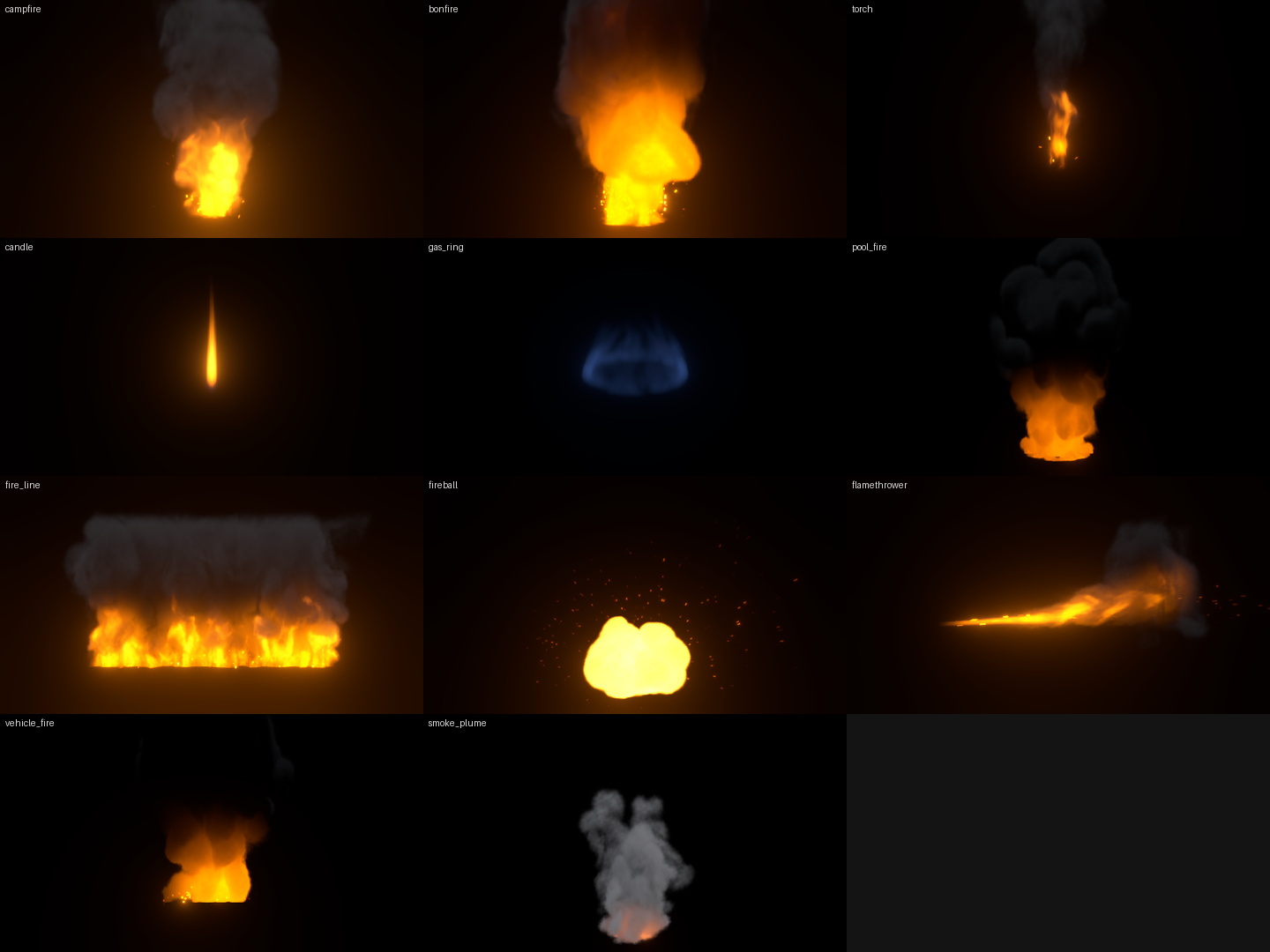

Fire presets#

Fire that moves like real fire#

Puffing, and fire that moves at the speed of real fire#

Real fires puff: every fraction of a second a bulge swells at the base, rolls up and pinches off the top of the flame, about 1.5/√D times a second for a base D metres across (twice a second for a campfire, under once for a bonfire). The grid is too coarse to form these eddies itself, so Motion › Puffing makes the heat and the rise of the gas over each emitter surge at the rate for its size. tools/fire_check.py simulates a fire and measures its puffing, flame height and gas speed against measurements of real fires (Cetegen and Ahmed's puffing law, Heskestad's flame height, McCaffrey's plume speeds). Measured this way the pool-like presets ran at half to two thirds of real gas speed and puffed three times too slowly, so the Campfire, Bonfire, Torch, Fuel spill and Vehicle fire presets now have a Domain › Time scale of 1.5–2.2, puffing and faster emitter patch drift, and match real fire to within about 20%. A time scale packs more simulated time into each frame, so the solver may take that many more substeps (Domain › Max substeps is raised with it); those presets also allow 12. A fire built from scratch (Create) ran the same way, at about two thirds of real gas speed at every size, so the first steady fire in a scene sets its Time scale to 1.5, which brings its gas speed to within about 6% of real (and a campfire's puffing with it). A time scale speeds up everything in the scene, though, so a scene with things that move at their own real speed (water, rain and snow, things that fall or float, fabric, sand, grass) keeps a Time scale of 1, and adding one sets it back to 1 (the note says so). A Time scale you set yourself stays, unless it is exactly 1.5 in a scene with a fire.

Swirl (fire whirls)#

Emitter › Swirl spins the air around the emitter's vertical axis. The spin is driven near the base and the rising gas carries it up, so a pool fire twists into a column. About 2–3 m/s suits a 2 m pool; much more makes the column break down into a spinning carpet of flame. Swirl width sets how far out the spin reaches.

Moving emitters and colliders#

Moving emitters#

Keyframe an emitter's Position to wave a torch, run a burning stuntman through the shot or drop burning debris. The emitter drags the air and its embers along (Motion inheritance), and emitters move smoothly within each frame, so fast ones leave a continuous trail.

Moving colliders#

Keyframe a collider's Position, Size or Rotation. It pushes the gas out of its way and drags it along: a car through smoke, a door swinging open. The smoke, fuel and heat it runs into are shoved ahead of it and pressed together, then flow round it, and the air it leaves behind fills from beside it, so a car driven through a bank of smoke neither deletes the smoke in its way nor clears a tunnel through it. Something that moves less than a hundredth of a cell in a substep counts as still: broken pieces and sand lying where they fell jitter a little, and the gas goes round them as round any still wall.

Rooms, walls and doors#

A collider can be Hollow (walls of that thickness, for a room, tank or pipe) and have an Opening cut out of it (a door, window or vent; keyframe its size to open it). One hollow box with an opening replaces a room built from separate walls. A scene can have up to 16 emitters and 16 colliders.

Putting fire out, sparks, colour and steam#

Putting fire out#

Emitter › Put out cools the gas toward 100 °C, smothers fuel and flame, and puts out burning surfaces: a hose, an extinguisher, rain. The heat it takes turns to steam (Combustion › Steam from dousing). Give the emitter a Start time to turn the hose on mid-shot.

Sparks#

Embers › Launch direction and Launch cone aim the particles; Gravity 9.81 and low Air drag make them fall like hot metal. Particles bounce off the ground and colliders (Bounce, Friction, Hit colliders). An emitter with no fuel still throws sparks, so they work without any fire.

Coloured flames#

Emitter › Colourant releases a metal salt with the fuel. It glows in its own colour wherever the gas is hot: copper green, strontium red, sodium orange, potassium lilac. The same colour tints that emitter's embers, which is how the firework stars are coloured. Shading › Base glow colour changes the blue base of gas flames to any colour, for the whole fire.

Steam#

Emitter › Steam releases water vapour (about 600 g/m³ for steam straight off boiling water) and the gas needs a little Heat to rise (0.055 is 100 °C at the default flame temperature). The vapour stays clear while hot and condenses into visible steam as it cools and mixes, then evaporates at its edges. Colder, more humid air (Shading › Air temperature, Air humidity) makes more of it. Combustion › Water from burning adds the water vapour flames make, for fires in freezing air. Condensing steam gives off its latent heat (Combustion › Latent heat), so it billows upward like a cloud. With a liquid in the same box, water puts fire out and boils to steam (Combustion › Water on fire; see Fire, water and lava together).

Fire that spreads#

Spreading fire#

Turn on Spreading fire (its own section in Settings) and fire spreads by itself over the ground and over any collider marked Burnable; a burnable collider can move or fall while it burns, and its fire goes with it. Its burn is kept in proportion to its size, so on an object whose Size is animated the burning and burnt patches grow and shrink with it and stay where they were on its surface. A spot catches after sitting in hot gas for the Catch time, flames for the Burn time, smoulders, then is burnt out for good. Light it with any emitter, even one that burns for only a moment. Wind-blown flames carry the front downwind; Creep speed spreads it in still air. Coverage leaves bare patches.

Spot fires#

Wood (an object made of a wood that Breaks and is Burnable) burns as wood does, by its own figures rather than Catch time, Creep speed and Burn time: it catches where enough heat reaches it, fire climbs it fast and creeps over it slowly, and it chars at its real rate, through and falls in. Real wood takes minutes to catch all over and tens of minutes to char through, so Spreading fire › Burn speed-up time-lapses its burning while the flames and smoke move at their own speed (see Breaking and burning).

Spreading fire › Spot fires is the chance that a hot ember landing on something burnable starts a new fire there: the burnable ground, or any collider marked Burnable (a roof, a deck, a terrain heightfield). Embers blown ahead of a front start spot fires the wind then joins up.

Wet surfaces#

Water that puts a burning surface out also soaks it (Spreading fire › Drying time, 20 s by default): it cannot catch again until it has dried, faster in hot gas, and it shows darker in the composite (Composite › Wet surfaces). Scorch stays where a surface has burnt, even after it is put out.

Soot stains#

Combustion › Soot stains lets smoke leave soot on the floor, the box's closed sides and every collider it touches: heaviest where hot smoke pools under a ceiling or pours out of a doorway. A collider keeps its soot in its own frame and in proportion to its size, so soot on a car or a door that moves or turns goes with it, and soot on an object whose Size is animated grows and shrinks with it. Composite › Soot darkens the footage there, and EXRs get a soot layer.

Closed rooms and flame fronts#

Tracked air (closed rooms)#

Combustion › Air supply › Tracked makes burning use up the air's oxygen. A fire in a closed room (colliders for walls, with a gap to leak through) dies down, unburnt fuel builds up, and flames flare again when fresh air gets in. Air use sets how fast a room runs out. Combustion › Heat expansion makes gas swell as it heats and shrink as it cools, as real air does, so a hot closed room pushes smoke out of every gap.

Flame fronts (flash fires, gas clouds, backdrafts)#

Combustion › Flame speed lets fuel that has already mixed with air burn as a premixed flame front: it catches from any flame next to it and a front runs through it at that speed (2–8 m/s for hydrocarbon vapours in turbulent air), however cold the gas is. Fuel vapour weight makes unburnt fuel heavier than air, so petrol, propane or butane vapour sinks and spreads along the ground until something lights it. With both, a spill's vapour flashes back to the puddle, and a leaked cloud goes up in a fraction of a second.

Meshes and terrain#

Meshes#

Set an emitter's or collider's Shape to Mesh and choose an OBJ or STL file (metres, y up; it need not be watertight). A mesh collider blocks the gas like the real object; mark it Burnable to let fire spread over it. A mesh emitter releases fuel within Surface depth of its surface. Size scales the mesh on each axis. The mesh is converted to a distance field on the GPU the first time it is used (Domain › Mesh detail, advanced) and kept on disk, so it is only converted once per machine.

Terrain#

A greyscale image (PNG, 16-bit PNG, TIFF or EXR) chosen as a mesh is read as a heightfield: black is the bottom, white the top, and Size is its width, height and depth in metres. Mark it Burnable and turn Spreading fire's Ground burns off for a fire on a slope (the Fire running uphill preset).

Deforming meshes#

Choose one file of a numbered OBJ or STL sequence (burning_man.0001.obj …) and say yes to using the whole sequence: the mesh changes shape every frame, blending smoothly between frames, and pushes the gas as its surface moves. Mesh frame offset (advanced) slides it in time. USD prims with animated points work the same way (see Scene import).

The look of fire and smoke#

Coal bed#

Shading › Coal bed heaps glowing coals on the ground where the flames burn down onto it, over charred ground, for footage with no real fire bed. They glow at Coal temperature, hottest deep in the bed, and slowly shift. Coal bed height sets how high they are heaped. The Campfire and Bonfire presets have one.

Multiple scattering#

Shading › Multiple scattering lets light bounce around inside smoke more than once. Pale smoke and steam glow white inside instead of going grey; dark smoke barely changes.

Real-world brightness#

With Shading › Real-world brightness, thick flame shines as brightly as a blackbody at the flame temperature does, against the footage's exposure: set Scene light to how brightly the scene was lit (EV at ISO 100: about 4 at night, 9 at dusk, 12 overcast, 15 in sun). Real flame is many stops over a night exposure and about level with full sun. Use it with realistic temperatures: the soot of a wood fire glows at 1100–1400 K, and at 1650 K the flame is far brighter than a real campfire.

Camera colour#

Shading › Colour as seen by colours flame as a typical camera sensor records it (the default: a touch more yellow than the eye sees, and always within the colours a display can show) or as the eye sees it. The sensor is a generic CMOS model, not any one camera.
